Our CP-90

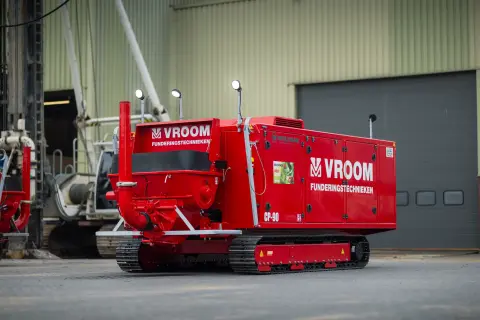

The Woltman CP-90 is designed to deliver reliable and efficient concrete pumping for demanding construction and foundation projects. Combining powerful performance with dependable operation, it supports the effective placement of concrete across a wide range of applications. Discover the capabilities of the CP-90 and explore its technical specifications to learn more.
Specifications
CP-90:
Weight (kg) = 9500
Pumpkit, Schwing = P1620
Delivery cilinders (mm) = 200 x 1.600
Concrete output max. (m³/h) = 87
Pressure on concrete max. (bar) = 60
Stroke rate (1/min) = 28
Engine = catapillar C-4.4, Stage V, 175 PK (129 kW)
Fuel tank [I] = 350
Hopper capacity [I] = 400
Controling system = IFM
Automatic greasing system
Painting in company colors
Dowload product info for dimension specifications
Optional:
- Hydro Aircompressor, Dynaset HKR2500/10-67
- Airtank, 150 I
- Watertank, 2x 270 I
- High pressure watercleaner, 250 bar, 10 m hose & gun
- Remote control moving
- Remote controle pumping
