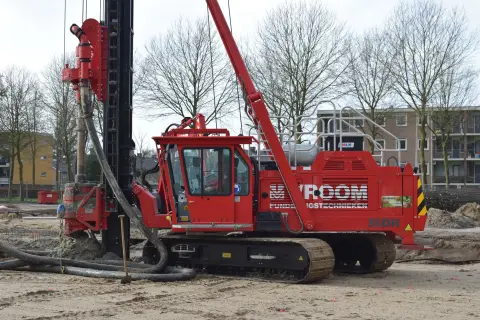

Our 35 DR

Our drilling rigs are engineered for precise, efficient, and reliable drilling across a wide range of foundation applications. Combining powerful performance with versatile capabilities, they provide dependable solutions for diverse projects and ground conditions. Explore our lineup and review the technical specifications to find the right drilling rig for your needs.

Talk to an Expert

Specifications

35 DR

Standard leader length = 16,5 m
Max. leader length = 19,5 m
Max. weight rotary head + auger = 5,9 ton
Emission regulation = Stage V
Engine = C7.1
Max. torque = 8 ton/m
Max. drill depth = 15(17) m
Max. pull up = 30 ton
Max. pull down = 5 ton
Capacity of aux. winch = 3 ton
Engine output = 205/275
Operational width = 3600 mm
Transport width = 3000 mm
Operational weight incl. rotary head = 35 ton
Recommended rotary head = RH-8
Transport weight incl. rotary head = 35 ton
Max. oil flow = 260 I/min
Stroke sliding brace = 1250 mm
Recommended auger cleaner = AC 550

Download product info
