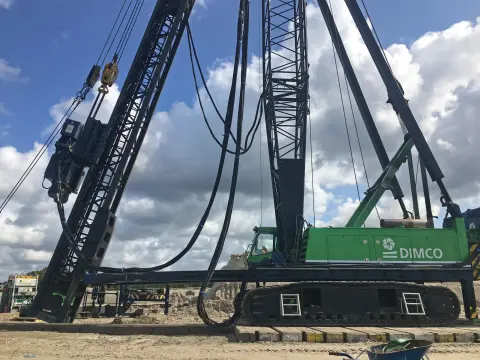

Our Pds 1000
This PDS rig is engineered to deliver reliable performance, precision, and efficiency in foundation work. Review the technical specifications for an overview of the machine’s key features and capabilities.
Specifications
PDS 1000:
Standard leader length = 34 m
Max. leader length = 40 m
Standard boom length = 42 m
Max. weight hammer + pile = 37 ton
Emission regulation = Stage V
Engine = C9.3
Max. lifting capacity at 4.2 m = 100 ton
Capacity main winch = 15 ton
Capacity of aux. winch = 6 ton
Engine output = 305/415 kW/HP
Transport width = 3500 mm
Transport length = 14625 mm
Transort height = 3500 mm
Transport weight = 78 ton
